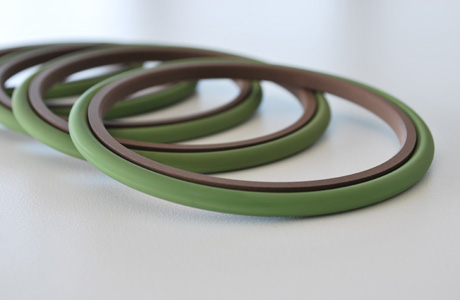

PTFE PISTON SEAL AND ROD SEAL
Produced with a combination of special compound PTFE ring and 70 shore NBR O-ring, our BSJ design has a wide application area. Being able to be usded safely at high linear velocity,BSJ type seals can also work in higher temperatures or different liquids by means of changing o-ring used as pressure ring.
By the help of its profile design they can be used as header pressure ring in hydaulic systems without having the problem of hydro-dynamic pressure.
Technical Data:
Pressure: 400 Bar
Temperature: with NBR O-ring: -35 to +105 with FKM O-ring: -35 to +200
Speed: 5m/s
Media: Hydraulic oils (mineral oil-based)
Material:
Material: Almost all media O-ring: NBR/FKM
Color: Green/Brown O-ring: Black/Brown
Advantages:
High static and dynamic sealing effect Low friction, high efficiency
Stick-slip free starting, no sticking Easy installation
